Tension device УН.П(40) is used at FOCL construction to anchor type 8 FOCs. Attachment points - reinforced concrete supports of OPLs/FOCLs and other suitable and acceptable vertical surfaces. Support suitability means its 185-240 mm (type CB support).
Min. working load of device УН-П — 2 kN.
Manufacturer: OOO Trading House MSK.
Availability of УНП: warehouses in Saint Petersburg, Moscow.
Delivery: 2-3 business days. Free of charge to Msc/SPb terminals.
Delivery set of УН.П(40)
- Cross-arm – 1 pc.
- stop — 1 pc.
- Stud — 2 pcs.
- nut — 8 pcs.
- washer — 4 pcs.
Installation of tension mounts УН.П(40)
Attachment height of tension mount УН.П(40) shall be as specified at the project assignment. OF is fixed with spiral tension clamps НСО, type 8 FOC is fixed with wedge clamps (e.g. PA 1500). Otherwise, other anchoring methods are used.

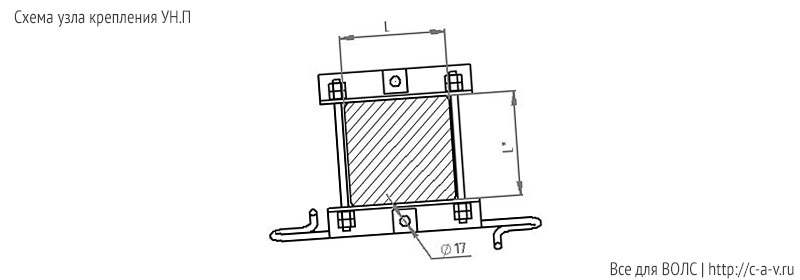

See below tension mount УН.П(40) diagram:
Buy mount УН.П(40)
Our company is a manufacturer of devices and components for attachment of fiber optic cables at FOCLs building applications.
The request for the device manufacture shall include:
УН.П — L × L*,
where L is overall size of the support at the attachment point of the tension cross-arm, mm.
L* is overall size of the support at the stud side, mm.
Select and buy tension mount УН П from our catalog at manufacturer's prices. Sales of fastening devices and delivery to all regions of Russia.
